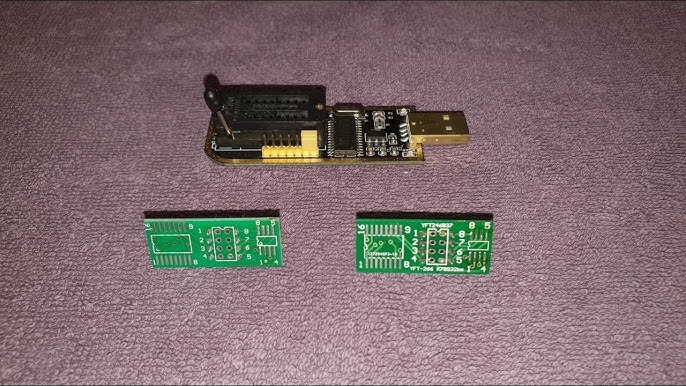

CH341A Read BIOS Failed Fix (Real Solutions From Hands-On Repair Work)
If your CH341A programmer says “Read BIOS Failed”, don’t panic. I’ve worked with these programmers for years on laptops, desktops, routers, TVs, and dead motherboards. This error is extremely common—and most of the time it does not mean the BIOS chip is dead.
Usually, the problem is something simple: bad clip contact, wrong voltage, unstable USB power, incorrect chip selection, or trying to read the chip while it’s still affected by the motherboard circuit.
This guide covers the real fixes technicians actually use when CH341A Read BIOS Failed appears.
What “Read BIOS Failed” Usually Means
It simply means the programmer could not successfully dump the BIOS chip contents.
That may happen as:
- Read stops at 0%
- Read reaches 100% but file is empty
- Software freezes during read
- Read returns only
FF FF FF - Random data every attempt
- Verify fails after read
Unstable or corrupted dumps are often caused by contact or power issues during reading.
1. Reseat the SOIC8 Clip (Most Common Fix)
Let me be honest: the cheap clip included with CH341A kits is often the weakest part of the whole setup.
I’ve spent 20 minutes troubleshooting only to realize one clip tooth wasn’t touching the chip leg properly.
What to do:
- Remove clip completely
- Align Pin 1 to Pin 1 carefully
- Reattach slowly
- Apply gentle downward pressure
- Try reading again
Sometimes reading works only if you lightly hold the clip during the process.
Poor clip seating is one of the most common causes of CH341A read problems.
2. Check Chip Voltage (1.8V vs 3.3V)
This mistake damages chips more often than people admit.
Many modern laptops use 1.8V BIOS chips, but standard CH341A boards usually output 3.3V unless using an adapter.
Result:
- Read BIOS Failed
- Unknown chip ID
- FFFFFF device ID
- No response
A real user trying to read a 1.8V Winbond chip reported detection failure even with multiple tools.
Real-world rule:
Always read the chip marking first. Never assume voltage.
3. Use a Rear USB Port
Cheap programmers hate unstable USB power.
I’ve seen CH341A fail repeatedly on front case ports, then read perfectly on rear motherboard USB ports.
Best practice:
- Use rear motherboard USB port
- Avoid hubs
- Avoid extension cables
- Prefer USB 2.0 port if available
It sounds basic, but it works.
4. Remove All Power From the Motherboard
This is a huge beginner mistake.
Trying to read BIOS while the laptop battery, CMOS battery, or charger is still connected can interfere with SPI lines.
Disconnect:
- Main battery
- Charger
- CMOS battery (if practical)
- Hold power button 15 seconds to discharge
There are cases where board power state caused instability during CH341A use.
5. Select the Correct Chip Manually
Auto-detect is convenient—but not always accurate.
Some software misidentifies:
- Winbond as Generic
- Gigadevice as similar model
- Wrong capacity size
Then reading fails or creates corrupt dumps.
My workflow:
- Read chip number physically
- Search datasheet
- Manually choose exact model in software
Never trust auto-detect blindly.
6. Try Different Software
This is how experienced techs work.
No single CH341A software is perfect.
Try:
- NeoProgrammer
- AsProgrammer
- CH341A Programmer v1.34/v1.44
- Flashrom (advanced)
Users regularly report one tool failing while another works on the same chip.
7. If You Get Different Dumps Every Read
Very important warning:
If every backup file is different, do not flash anything yet.
That means unstable reading.
Common causes:
- Loose clip
- Weak USB voltage
- Dirty chip legs
- Board interference
- Failing programmer
A forum case showed changing CRC values on every read, confirming unstable dumps.
Correct move:
Keep reseating and reading until two dumps match exactly.
That’s the professional standard.
8. Clean the Chip Legs
Oxidized pins are real.
Especially on older desktops or humid environments.
Use:
- Isopropyl alcohol
- Soft brush
- Dry fully before reconnecting clip
This tiny step solves more no-read issues than people expect.
9. Desolder the Chip If Onboard Reading Fails
Hard truth: onboard clip flashing is convenient, but not always reliable.
Some motherboards hold lines active, causing read failure.
Even repair communities often advise that removing the chip gives better results than in-circuit programming.
If you have hot air tools and experience, off-board reading is often cleaner.
Quick Fix Checklist
✔ Reseat SOIC8 clip
✔ Confirm Pin 1 orientation
✔ Check 1.8V vs 3.3V
✔ Use rear USB port
✔ Disconnect all board power
✔ Select exact chip manually
✔ Try NeoProgrammer / AsProgrammer
✔ Compare two dumps
✔ Clean chip pins
✔ Consider desoldering chip
Final Verdict
In real repair work, CH341A Read BIOS Failed is rarely the BIOS chip itself.
Most failures come from:
- Bad clip contact
- Wrong voltage
- Wrong chip selection
- Power still connected to board
- Cheap unstable programmer
The biggest rookie mistake? Writing a BIOS file before getting one clean, repeatable read.
Always get two identical backups first.
